• Ondersteuning Android 9.0 systeem en ondersteuning UHF
• Optionele 3G/4G alle netwerkcommunicatie, WiFi, Bluetooth en andere communicatiemodi
• Uitgerust met 4000mAh batterij met grote capaciteit, heeft de machine een uithoudingsvermogen van 9,5 uur
• IP65 hoog beschermingsniveau, overeenkomstig MIL-STD-810G
• Ondersteuning van GPS, GLONASS, nauwkeurigere positionering
• Uitgerust met 13 miljoen pixel autofocuscamera, gemakkelijk om afbeeldingen en video-informatie te verzamelen
• Ondersteuning van 1D/2D, NFC en andere functionele modules om te voldoen aan de toepassingsbehoeften van meerdere industrieën
Android
Bluetooth
1D
2D
WiFi
3G/4G
IP65
GPS
Camera
NFC
| Basic parameters | |
| Dimension | 147.7 x 74 x 19mm |
| Weight | device unit 220g |
| Product Color | Black |
| LCD | 5 inch IPS 16:9, 1280x720, 330nits |
| Touch Panel | 5 point G+G capacitive touch screen Corning® Gorilla® Glass |
| I/O | TF Card x 1 SIM Card x 1 USB Type-C x 1 8Pin back shell x 1, 2Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1 |

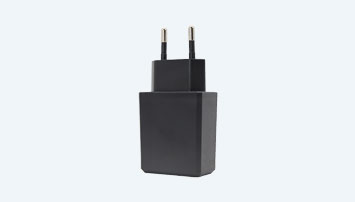

| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/2A |
| Camera | Rear 13MP |
| Performance parameter | |
| CPU | ARM (OCTA Core), 2.0GHz |
| OS | Android 9.0 |
| RAM | 4GB |
| Storage | 64GB |
| Data Collection | |
| NFC | Built-in, ISO/IEC 14443A/B |
| 1D | Support |
| 2D | Support |
| Network connections | |
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5G) |
| Bluetooth | BT4.0 |
3G/4G (Optional) | CMCC 4M： LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 |
| GNSS | Built-in GPS+Glonass |
| Reliability | |
| Operate Temperature | -10 °C ~ 55 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.2m |
| Battery | |
| Capacity | 3.85V/4000mAh |
| Type | Built-in Lithium-ion polymer battery |
| Endurance | 9.5hrs (default 50% volumn，default 50% screen brightness， play 1080P HD video) |
* Please be aware all technical data, specification and performance figures subject to change without notice.
1 Durability: The device is designed to withstand drops, shocks, and vibrations, with an IP65 rating for water and dust resistance.
2 Applications: The device can be used for inventory management, asset tracking, supply chain management, and other applications that require RFID technology. It supports various software development kits (SDKs) for application development.
3 The EM-Q51 handheld UHF RFID reader can be used in a variety of scenarios that require fast and accurate data collection, such as inventory management，asset tracking, supply chain management and retail.
Verschillende modules en accessoires kunnen worden geselecteerd om te voldoen aan de toepassing van klanten in verschillende industrieën.
Verschillende modules en accessoires kunnen worden geselecteerd om te voldoen aan de toepassing van klanten in verschillende industrieën.
